Element Visibility Trigger

The "Element Visibility" Trigger fires when specified element(s) enters the viewport after scroll down. If the specified scroll depth is visible in the viewport when the page loads, the trigger will fire without a scroll occurring. Below you can find how to set up a box with "Element Visibility" trigger, all supported settings for this trigger explained as well as how to trigger it with the JavaScript Events API.

• How to create a popup that appears when an element becomes visible in Joomla
• Trigger Settings
• Use Cases
• Frequently Asked Questions

How to create a popup that appears when an element becomes visible in Joomla

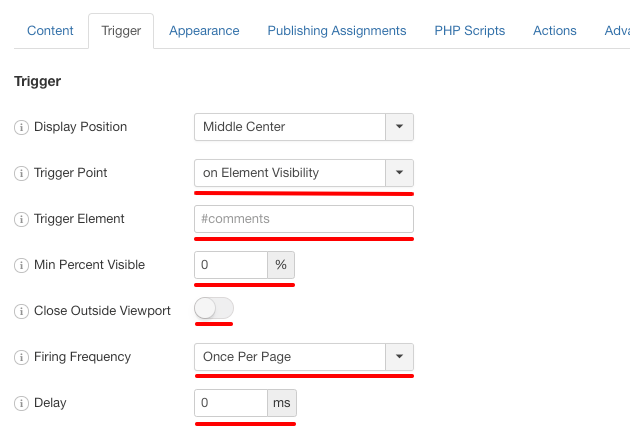

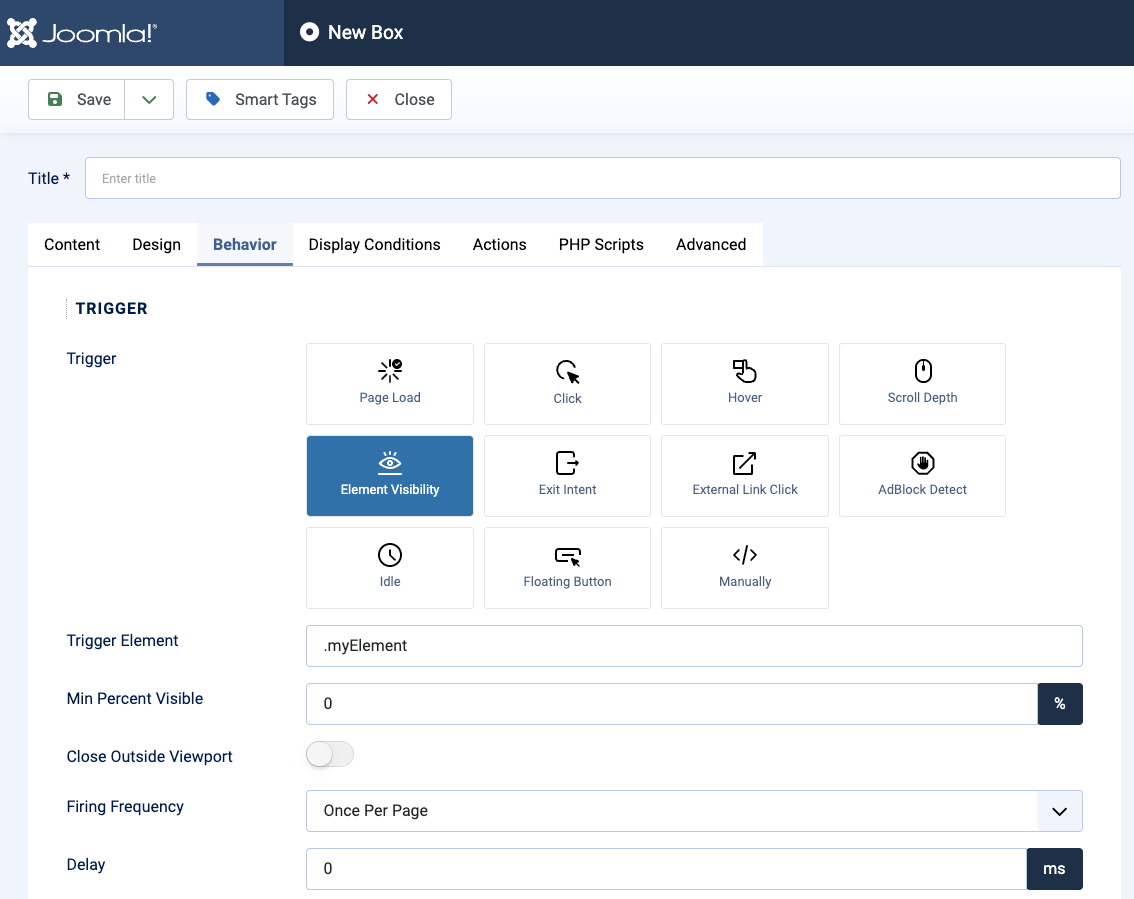

To set up your box to trigger on Element Visibility go to your box > Trigger Tab > Trigger Section and apply the following settings:

• Click on Trigger Point and select on Element Visibility.
• Set the Trigger Element by specifying the ID or the Class of the element(s) that should fire this trigger. You can specify multiple elements separated by comma.
• Set the percentage of the triggered element that must be visible in order for the trigger to fire, in the Min Percent Visible setting.
• Set whether to close the box when the triggered element is outside the viewport in the Close Outside Viewport setting.
• Set whether to fire the trigger once or unlimited times on the Firing Frequency setting.
• Lastly, set the delay of the trigger by entering a number in milliseconds in the Delay setting

Trigger Settings

Below you can find all settings that are configurable when you choose the "on Element Visibility" Trigger.

Use Cases

Open box once user has started scrolling over a specific element on your page

A use case for this would be when you have a specific element on your page that you want to display the box only when your users scroll on your page and find the element you specified on your box settings which will trigger the box to appear. As your user keep scrolling, the box can also be closed automatically.

Open box once user has scrolled over a specific element on your page

This use case works the same as the one above but requires the element to be fully visible to your user before the box can appear.

Open box when page loads and user is viewing a specific element

The "On Element Visibility" trigger also displays a box when you load a page and you are viewing the specified element without trigger a scroll. This will display the box as soon as the page finishes loading.

Frequently Asked Questions

How to Trigger using Javascript

Using the Javascript Events API v2, you can configure any box to be triggered using the "on Element Visibility" Trigger. Below you can find a Javascript snippet:

EngageBox.onReady(function() {
    // Get box instance
    const box = EngageBox.getInstance(5);

    box.bindTrigger('onElementVisibility', {
        trigger_selector: '.myButton',
        threshold: 0.8 // 80% percent,
        close_out_viewport: true
    });
});

You can read more on the Javascript Events API documentation, on Element Visibility Trigger.
